Item code: USB-4COMi-SI-M-120V (120 volt version, 60 hz)

Introduction:

This USB Industrial I/O Adapter is designed to make industrial communication port expeansion quick and simple. Connecting to a USB port on your computer or USB hub, this USB Industrial I/O Adapter instantly adds and industrial multi-electrical interface serial communication port to your system. By taking advantage of the USB bus, this USB Serial Adapter makes it easier than ever to add 4 RS422/485 serial ports and serial devices to your system with easy plug-and-play and hot plug features.

Plugging the USB Industrial I/O Adapter into the USB port, the adapter is automatically detected and installed. There is no IRQ & COM port conflicts, since the port doesn't require any additional IRQ, DMA or memory on the system. The RS-422/485 port functions as a native Windows COM port, and it is compatible with Windows serial communication applications. Each port is individually configurable via DIP switches on the outside of the USB-4COMi-SI box.

This USB to Industrial I/O Adapter provides instant connectivity to RS422/485 communication devices for factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, PC to PC long distance communications, ATMs and serial communications in harsh enviornments. This USB to Serial Adapter is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS-422/485 communication ports.

Specifications & Features:

  • Adds 4 high speed RS422/485 serial port via USB connection
  • 384 byte receive buffer.
  • 128 byte transmit buffer for high speed data throughput.
  • Requires no IRQ, DMA or I/O port.
  • Data rate speed range: 300 bps to 921,600 bps
  • Serial Connector: DB-9 male connector
  • Supports RS-422 Full Duplex, RS-485 Half Duplex and RS-485 Full Duplex modes.
  • Auto transmit buffer control for 2-wire RS-485 half-duplex operation.
  • RS-422 data signals: Tx-, Tx+, Rx+, Rx-, GND, RTS-, RTS+, CTS+, CTS-.
  • RS-485 data signals: Rx-, Tx+, Rx+, Rx- (r wire), and data-, data+ (2 wire).
  • LEDs which show transmitting and receiving of data.
  • Easily mountable
  • Metal Housing
  • Dimensions of 167 9929 mm (WLH) or 18910230 mm with DB9 connectors and ears.
  • Virtual COM port drivers provided for Windows 10, 8, 7, Vista, XP, ME, 98, Server 2012, Server 2008, Server 2003, CE.NET (version 4.2 and greater), or RT in 32-bit or 64-bit installations. Also supports Linux, MAC OS X, MAC OS 9, MAC OS 8, Android.
  • This adapter supplies Optical Isolation & Surge Protection.

    Each RS-422/485 port is individually optically isolated with 2000 volt DC optical isolation. The optical protects your PC or notebook from spikes and surges on the RS-422/485 network, by converting the electrical pulse into an optical signal and then changing it back into an electrical pulse. Your computer is well protected, since the surges and spikes cannot cross the optical link. Each RS-422/485 port is individually protected by surge protector to withstand electrostatic discharge and power surges up to 25KV ESD. Surge suppression on all signals prevent damages caused by lighning and high voltage.

    Free Shipping within the 48 continental USA states! (Online orders only)


    Order yours now for immediate shipping. We accept Visa, Mastercard, American Express, Discover and PayPal though our secure server.

    We stand behind our product If you need any assistance, you can call us toll-free for the life of the product for free assistance at 1-800-274-7897 (USA & Canada only), or +1-865-988-7906 for those in other areas.

    Product comes with a 1 year warranty, and a 30-day money back guarantee with no restocking fee.

USB to 4 serial port adapter (RS422/485, 120V)

Quantity Desired:


In Stock!

Orders placed by 4:30 pm Eastern time M-F will ship the same day.

Quantity Discounts
QuantityPrice
1+$289.00
3+$284.00
10+$279.00
50+$275.00
100+$269.00
print

Item code: USB-4COMi-SI-M-230V (230 volt version, 50 hz)

Introduction:

This USB Industrial I/O Adapter is designed to make industrial communication port expeansion quick and simple. Connecting to a USB port on your computer or USB hub, this USB Industrial I/O Adapter instantly adds and industrial multi-electrical interface serial communication port to your system. By taking advantage of the USB bus, this USB Serial Adapter makes it easier than ever to add 4 RS422/485 serial ports and serial devices to your system with easy plug-and-play and hot plug features.

Plugging the USB Industrial I/O Adapter into the USB port, the adapter is automatically detected and installed. There is no IRQ & COM port conflicts, since the port doesn't require any additional IRQ, DMA or memory on the system. The RS-422/485 port functions as a native Windows COM port, and it is compatible with Windows serial communication applications. Each port is individually configurable via DIP switches on the outside of the USB-4COMi-SI box.

This USB to Industrial I/O Adapter provides instant connectivity to RS422/485 communication devices for factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, PC to PC long distance communications, ATMs and serial communications in harsh enviornments. This USB to Serial Adapter is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS-422/485 communication ports.

Specifications & Features:

  • Adds 4 high speed RS422/485 serial port via USB connection
  • 384 byte receive buffer.
  • 128 byte transmit buffer for high speed data throughput.
  • Requires no IRQ, DMA or I/O port.
  • Data rate speed range: 300 bps to 921,600 bps
  • Serial Connector: DB-9 male connector
  • Supports RS-422 Full Duplex, RS-485 Half Duplex and RS-485 Full Duplex modes.
  • Auto transmit buffer control for 2-wire RS-485 half-duplex operation.
  • RS-422 data signals: Tx-, Tx+, Rx+, Rx-, GND, RTS-, RTS+, CTS+, CTS-.
  • RS-485 data signals: Rx-, Tx+, Rx+, Rx- (r wire), and data-, data+ (2 wire).
  • LEDs which show transmitting and receiving of data.
  • Easily mountable
  • Metal Housing
  • Dimensions of 167 9929 mm (WLH) or 18910230 mm with DB9 connectors and ears.
  • Virtual COM port drivers provided for Windows 10, 8, 7, Vista, XP, ME, 98, Server 2012, Server 2008, Server 2003, CE.NET (version 4.2 and greater), or RT in 32-bit or 64-bit installations. Also supports Linux, MAC OS X, MAC OS 9, MAC OS 8, Android.

This adapter supplies Optical Isolation & Surge Protection.

Each RS-422/485 port is individually optically isolated with 2000 volt DC optical isolation. The optical protects your PC or notebook from spikes and surges on the RS-422/485 network, by converting the electrical pulse into an optical signal and then changing it back into an electrical pulse. Your computer is well protected, since the surges and spikes cannot cross the optical link. Each RS-422/485 port is individually protected by surge protector to withstand electrostatic discharge and power surges up to 25KV ESD. Surge suppression on all signals prevent damages caused by lighning and high voltage.

Free Shipping within the 48 continental USA states! (Online orders only)


Order yours now for immediate shipping. We accept Visa, Mastercard, American Express, Discover and PayPal though our secure server.

We stand behind our product If you need any assistance, you can call us toll-free for the life of the product for free assistance at 1-800-274-7897 (USA & Canada only), or +1-865-988-7906 for those in other areas.

Product comes with a 1 year warranty, and a 30-day money back guarantee with no restocking fee.

USB to 4 serial port adapter (RS422/485, 230V)

Quantity Desired:


In Stock!

Orders placed by 4:30 pm Eastern time M-F will ship the same day.

Quantity Discounts
QuantityPrice
1+$289.00
3+$284.00
10+$279.00
50+$275.00
100+$269.00
print

Item code: USB-4COMi-PRO

Introduction:

This USB Industrial I/O Adapter is designed to make industrial communication port expeansion quick and simple. Connecting to a USB port on your computer or USB hub, this USB Industrial I/O Adapter instantly adds and industrial multi-electrical interface serial communication port to your system. By taking advantage of the USB bus, this USB Serial Adapter makes it easier than ever to add 4 RS232/RS422/485 serial ports and serial devices to your system with easy plug-and-play and hot plug features.

Plugging the USB Industrial I/O Adapter into the USB port, the adapter is automatically detected and installed. There is no IRQ & COM port conflicts, since the port doesn't require any additional IRQ, DMA or memory on the system. The RS232/RS422/RS485 port functions as a native Windows COM port, and it is compatible with Windows serial communication applications. Each port is individually configurable via included software. There are no dip switches or jumpers to deal with.

This USB to Industrial I/O Adapter provides instant connectivity to RS232/422/485 communication devices for factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, PC to PC long distance communications, ATMs and serial communications in harsh enviornments. This USB to Serial Adapter is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS232/422/485 communication ports.

Specifications & Features:

  • Adds 4 high speed RS232/422/485 serial port via USB connection
  • 384 byte receive buffer.
  • 128 byte transmit buffer for high speed data throughput.
  • Requires no IRQ, DMA or I/O port.
  • Data rate speed range for RS232: 300 bps to 921,600 bps
  • Data rate speed range for RS422/485: 300 bps to 3Mbps
  • Serial Connector: DB-9 male connector
  • Available modes: RS-232 Full Duplex, RS-422 Full Duplex, RS-485 4 Wire Full Duplex, RS-485 2 Wire Half Duplex (with echo), RS-485 2 Wire Half Duplex (without echo)
  • Signals:
    • RS232 TxD, RxD, RTS/CTS, DTR, DSR, DCD, RI, GND
    • RS422 Tx+/-, Rx+/-, GND
    • RS485 2 wire Data+/-, GND
    • RS485 4 wire Tx+/-, Rx+/-, GND
  • Interface: USB 2.0
  • Power: External Power Supply (5V DC)
  • LEDs which show transmitting and receiving of data.
  • Easily Mountable
  • Metal Housing
  • Dimensions of 1729529 mm (WLH) or 1849929 mm with DB9 connectors and ears.
  • Virtual COM port drivers provided for Windows 10, 8, 7, Vista, XP, ME, 98, Server 2012, Server 2008, Server 2003, CE.NET (version 4.2 and greater), or RT in 32-bit or 64-bit installations. Also supports Linux, MAC OS X, MAC OS 9, MAC OS 8, Android.

Free Shipping within the 48 continental USA states! (Online orders only)


Order yours now for immediate shipping. We accept Visa, Mastercard, American Express, Discover and PayPal though our secure server.

We stand behind our product If you need any assistance, you can call us toll-free for the life of the product for free assistance at 1-800-274-7897 (USA & Canada only), or +1-865-988-7906 for those in other areas.

Product comes with a 1 year warranty, and a 30-day money back guarantee with no restocking fee.

USB to 4 serial port adapter (RS232/422/485), software settable

Quantity Desired:


In Stock!

Orders placed by 4:30 pm Eastern time M-F will ship the same day.

Quantity Discounts
QuantityPrice
1+$279.00
3+$274.00
10+$269.00
50+$265.00
100+$261.00
print

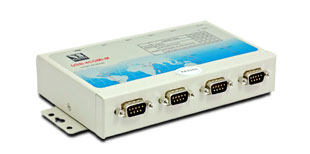

Item code: USB-4COMi-M-120V (120 volt version, 60 hz)

USB to four serial port converter with DB9 (9-pin male) connectors, metal housing. (RS-422/RS-485)

Comes with a USB cable & power supply (120 volt, 60 hz).

Features:

  • Metal Case
  • Optionally DIN-rail mountable with additional mounting kit.
  • 4 RS422/485 ports
  • Included external power supply

Specifications:

  • Number of ports: 4
  • Speed: Up to 921.6 Kbpz
  • RS422/485 signals: RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND RS485 Data+/-, GND
  • Power: External power supply 5V DC required. Adapter included, 12V not possible.
  • Virtual COM port drivers provided for Windows 10, 8, 7, Vista, XP, ME, 98, Server 2012, Server 2008, Server 2003, CE.NET (version 4.2 and greater), or RT in 32-bit or 64-bit installations. Also supports Linux, MAC OS X, MAC OS 9, MAC OS 8, Android.
  • Connectors: 4 DB9 Male
  • Dimensions: 167 x 99 x 29 mm (WLH)or 189 x 102 x 30 mm with DB9 connectors and ears.
  • Product includes USB-4COMi-M unit, USB cable of approximately 3 feet, Power Adapter, CD with drivers and documentation.

    This type of power connector is used in the following countries: American Samoa, Anguilla, Antigua, Aruba, Bahamas, Bangladesh, Barbados, Bermuda, Bolivia, Brazil, Cambodia, Canada, Cayman Islands, China (without holes in blades and slightly shorter blades), Colombia, Costa Rica, Cuba, Ecuador, El Salvador, Guam, Guatemala, Guyana, Haiti, Honduras, Jamaica, Japan, Laos, Lebanon, Liberia, Maldives, Mexico, Micronesia, Montserrat, Netherlands Antilles, Nicaragua, Niger, Okinawa, Panama, Peru, Philippines, Puerto Rico, St. Vincent, Saudi Arabia, Tahiti, Taiwan, Thailand, United States, Venezuela, Vietnam, Virgin Islands (U.S.& British), Yemen.
    Click here to view this type of power plug.

    Free Shipping within the 48 continental USA states! (Online orders only)


    Order yours now for immediate shipping. We accept Visa, Mastercard, American Express, Discover and PayPal though our secure server.

    We stand behind our product If you need any assistance, you can call us toll-free for the life of the product for free assistance at 1-800-274-7897 (USA & Canada only), or +1-865-988-7906 for those in other areas.

    Product comes with a 1 year warranty, and a 30-day money back guarantee with no restocking fee.

USB to 4 serial port adapter, metal (RS422/485, 120V)

Quantity Desired:


In Stock!

Orders placed by 4:30 pm Eastern time M-F will ship the same day.

Quantity Discounts
QuantityPrice
1+$189.00
3+$184.00
10+$180.00
50+$175.00
100+$173.00
