Item code: DU2300

Introduction:

This USB 2.0 Docking Station is a unique expansion unit specially designed to accompany notebook or desktop PC, which has extra connectivity demands. With only one USB port required from a notebook/desktop PC, not only USB but also conventional PIO, SIO and PS/2 peripheral devices can be accessed freely. The USB 2.0 Docking Station allows you to add multiple high-performance USB 2.0 peripheral devices to your PC. Moreover, this product is fully backwards compatible with the USB Revision 1.1 products, which means your previous USB 1.1 devices can continue to function as well. You also can add additional hubs and devices of up to 127 devices.

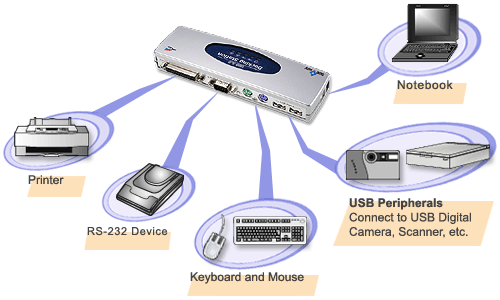

Function:

Features:

  • Great expansion unit for notebook to other devices
  • Compliant with USB 1.1/2.0 specifications.
  • Maximum transfer rate of 480Mbps.
  • Supports PS/2 keyboard/mouse, IEEE-1284 parallel printer, serial device connection.
  • Two USB 2.0 downstream ports.
  • Fully compliant with plug & play and hot swapping.
  • Supports self-power and bus-power mode.

System Requirements:

  • Pentium compatible PC or notebook
  • Windows® 2000, Server 2003, XP, Vista, 7 (serial port not compatible with Windows 8 or 10)
  • USB port
  • CD-ROM drive (for driver installation)

Specifications:

Model No.

2-Port Hub Model

USB Port
  • Upstream port for computer side (Type B receptacle) x1
  • Downstream ports for USB hub (Type A receptacle) x2
I/O Ports
  • PS/2 keyboard port (Mini Din 6 pin) x1
  • PS/2 mouse port (Mini Din 6 pin) x1
  • Serial port (DB 9 pin male) x1
  • Parallel port (DB 25 pin female) [works with printers only] x1
LED
  • Power LED (Red) x1
  • USB Hub Port LED (Green) x2
Power Mode Bus-powered and Self-powered
Emission CE, FCC
Power AC Input 100 V~240V
DC Output 5V, 2.5A
Environments
  • Operating temperature: 0oC~40oC
  • Storage temperature:-10oC~80oC
  • Humidity: 90% RH (No condensing)
Weight 144(g) / 5.1 (oz)
Dimension 178 x 58.6 x28.7 (mm) / 7 x 2.3 x 1.1 (in)
* Specification is subject to change without notice.

Package Contents:

  • USB 2.0 Docking Station x1
  • Power Adapter x1
  • USB 2.0 Cable x1
  • Driver CD x1
  • Quick Installation Guide x1


Quantity Desired:



In Stock!

Orders placed by 4:00 pm Eastern time M-F will ship the same day.

Quantity Discounts
QuantityPrice
1+$32.95
3+$32.00
10+$31.75
50+$31.50
100+$31.00
