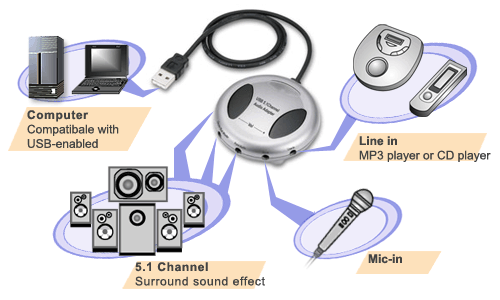

Function

System Requirements

• IBM compatible PC with one USB port
• With one of the following operating systems:

  	Windows® 98/SE Windows® ME Windows® 2000 Windows® XP Windows® VISTA

Special note for Vista customers: The UA580 adapter is Vista compatible, but currently the included Sound Station software is not Vista compatible. Other audio programs that are Vista compatible will work fine with the adapter.

Specification

• Compliant with USB specification V1.1
• Compliant with USB audio device class specification V1.0
• Compliant with USB HID class specification V1.1
• Plug-and-play operation with Microsoft OS default drivers
• Full-duplex playback/recording audio stream without any requirement of a sound card in PC
• Provides 1/8" audio connections (the standard size for computers).
• Will co-exist with sound cards and built in audio.
• LED indicator for Power (always red)/Playback (flash)
• Supports suspend/resume and remote wake-up
• Supports Fixed 48KHz sampling rate in analog recording and playback
• Supports 6 channels for analog playback in the analog playback mode
• Supports one stereo and one mono analog-line level inputs by analog recording in the analog recording mode
• Transfer Rate: 1.5/12 Mbps
• Operating Temperature: 0~40 degrees (Celsius)
• Storage Temperature: 0~70 degrees (Celsius)
• Humidity: 0~80%


Package Contents

• USB 5.1 Channel Audio Adapter.........1
• Application Software CD.....................1
• Quick Installation Guide.....................1

Please note: This item requires powered speakers (speakers that are plugged into a power outlet) to operate.
