Item code: IP-COMi-M

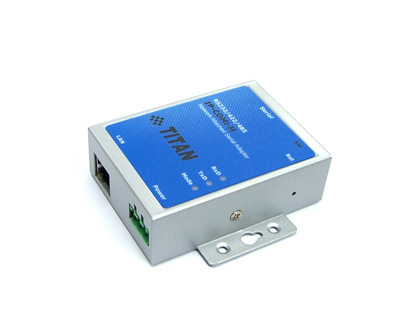

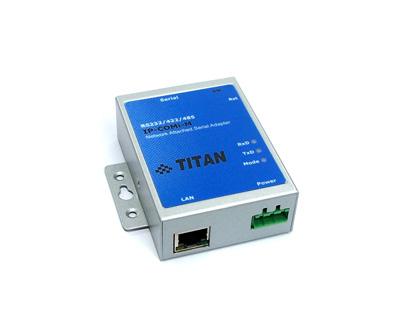

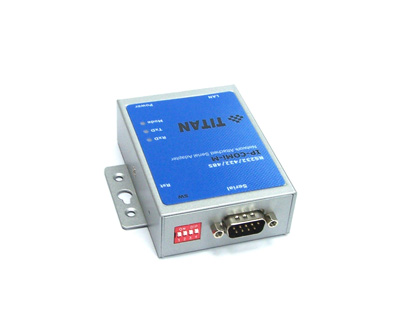

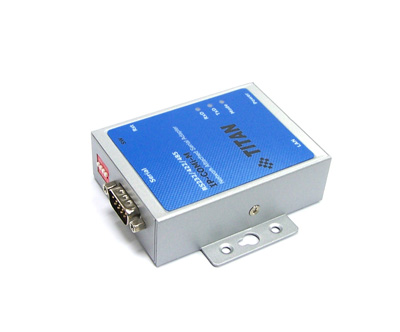

Byte Runner - TITAN IP-COMi-M

IP-COMi-M

Products Manual
  • IP-COMi-M
  • IP-COMi-M
  • IP-COMi-M
  • IP-COMi-M
IP-COMi-M - 1-Port RS-232/422/485 Network Attached Serial Adapter, DB9, Metal Case

Features

The TITAN Network Attached Serial Adapters are designed to add serial ports over 10/100/1000Mbps Ethernet network running TCP/IP. Connecting an Adapter to the Ethernet port on the computer or router, running the Manager Utility software, you can add a virtual COM port to your PC. The serial port functions as a native Windows COM port and is compatible with Windows serial communication applications.
The Virtual COM port is installed in the Device Manager of the operating system. This in turn will allow communications with the connected serial device in the same manner as a device connected to the COM port on a PC. The serial port supports high serial speeds up to 921.6Kbps in RS-232 mode. The LAN becomes transparent to the serial device and the software running on the PC.
The Adapter supports multiple users and multiple tasks operation over the same network. Plugging the Adapter to a network of multiple users, all of them may use the high speed RS-232/422/485 serial port of the Adapter. The serial port can be installed 100 meters away from the host. To further extend communication distance, the adapter supports extend mode by adding a switching hub between your computer and the Adapter to extend the distance by another 100 meters. Extra switching hubs can be added in between to increase the distance further.

This unit also comes with a 9-pin Female to Terminal Block Adapter which allows you to easily connect directly to the pins as opposed to going through the 9-pin serial port if you wish to do so.

Features

  • Extends serial communication distance.

  • Allows the serial device to communication over a LAN or Intranet network

  • Supports multiple users and multiple tasks operation over LAN.

  • Supports multiple function serial port RS-232/422/485 over LAN.

  • Installed as standard Windows COM port

  • Provides virtual COM port same as on board COM port.

  • Access and monitor serial devices over a Manager Utility interface software.

  • RS-422 data signals: Tx-, Tx+, Rx+, Rx-, GND, RTS-, RTS+, CTS+, CTS-

  • RS-485 data signals: Tx-, Tx+, Rx+, Rx- (4 wire), and data-, data+ (2 wire)

  • Industrial metal case with DIN rail mounting brackets.

  • Supports wide input power range: DC 9V ~ DC 35V.

  • High speed serial port with the baud rate up to 921.6K bps

  • Non-standard baudrates supported

  • LEDs of Power, TxD and RxD for easy port monitoring and diagnostics

  • Supports Windows 10, 8, Windows 7, Vista, 2003, XP, 2000 and Linux

    IP-COMi-M

USB Bus
Compliance USB 1.0/1.1 compliant, USB 2.0 compatible
Speed 12 Mbps, full-speed USB
FIFO 128 byte transmit FIFO
384 receive FIFO

Serial Interface
Port Type RS-232, RS-422, RS-485
Number of Ports 1
Connectors DB9 male

Serial Port Speed
Baudrate 300 bps to 921.6k bps

Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF

Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI

Driver Support
OS Windows 10, 8, Windows 7, Vista, 2003, XP (WHQL certified) and 2000

Power Supply
Input Self-powered
Power adapter of 12VDC, 1A, terminal type

Mechanical
Chassis SECC metal chassis with DIN rail bracket

Environmental
Operating Temperature 0 to 55 °C (32 to 131 °F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 75 °C (-4 to 167 °F)
Safety Approvals CE, FCC
RS-232 & RS-422 & RS-485 DB9 Male Connector Pin-outs
 width=
RS-232 DB9 Male

    RS-232 Signal Pin-outs of DB-9 Male

  Pin Signal
  1 DCD
  2 RxD
  3 TxD
  4 DTR
  5 GND
  6 DSR
  7 RTS
  8 CTS
  9 RI

RS-422 DB9 Male

    RS-422 Signal Pin-outs of DB-9 Male

  Pin Signal
  1 Tx- (A)
  2 Tx+(B)
  3 Rx+(B)
  4 Rx- (A)
  5 GND
  6 RTS- (A)
  7 RTS+(B)
  8 CTS+(B)
  9 CTS- (A)

RS-485 DB9 Male

    RS-485 4-Wire (Full duplex) Signal Pin-outs of DB-9 Male Connector

  Pin Signal
  1 Tx- (A)
  2 Tx+(B)
  3 Rx+(B)
  4 Rx- (A)
  5 GND


    RS-485 2-Wire (Half duplex) Signal Pin-outs of DB-9 Male Connector

  Pin Signal
  1 Data- (A)
  2 Data+(B)
  5 GND

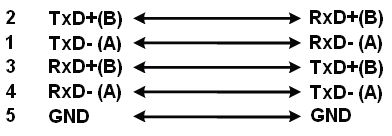

RS-422 Signal Wiring

    Point-to-Point 4 Wire Full Duplex

IP-COMi-M                                 RS-422 Device
 width=

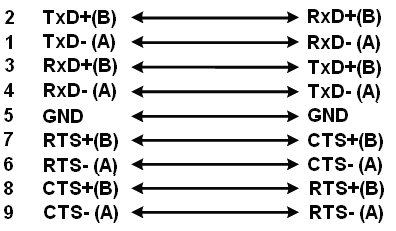

    RS-422 with Handshaking

IP-COMi-M                                  RS-422 Device
 width=

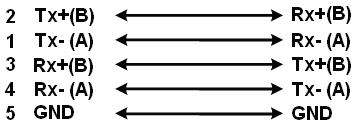

RS-485 Signal Wiring

    Point-to-Point 4-Wire Full Duplex

IP-COMi-M                               RS-485 Device
 width=

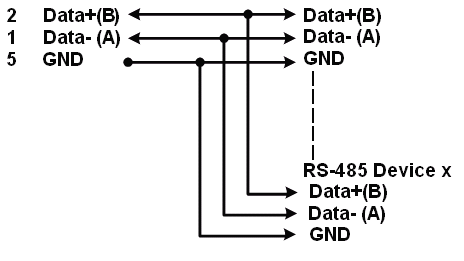

    Multidrop RS-485 2-Wire Half-duplex

IP-COMi-M                              RS-485 Device
 width=

IP-COMi-M Documentation



Products Manual

Download the Driver From Download page

  Driver Installation
  Uninstalling Drivers





Quantity Desired:



In Stock!

Orders placed by 4:00 pm Eastern time M-F will ship the same day.

Quantity Discounts
QuantityPrice
1+$79.95
3+$75.00
10+$72.00
50+$69.00
100+$68.00
